Swing Arm Mods

Yellow Peril 1 | | Yellow Peril 2 | | Yellow Peril 3 | | Yellow Peril 4 | | Yellow Peril 5 | | Yellow Peril 6 | | Gallery Page

This Page Sponsored by
luxomation Logo

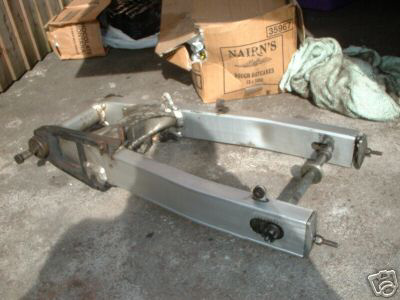

FZR400 type 1wg original swing arm

I chose the FZR400 type 1WG (single shock ) swing arm for the new back end

Photo by original owner for the Devils Swap meet Picture !
yp-swing arm-bracket

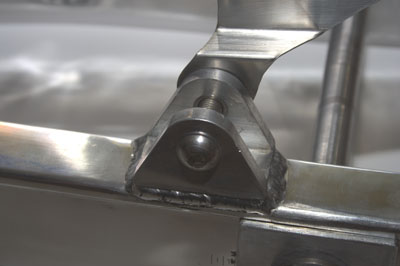

FZR400 type 1WG with twin shock lugs added

yp-hex-bobbins

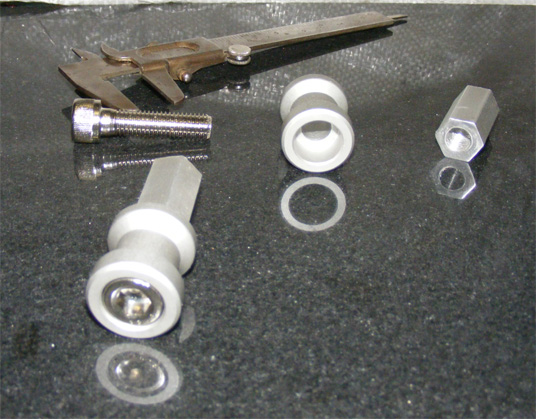

Close up of the Paddock Stand / Crash Bobbin parts & one complete assembly, before the custom made Hexagonal pieces were welded on to the underside of the swing arm

Now to make all this work you need a paddock stand, you could buy one OR you could make one as I did. See:- Paddock stand design project page




yp-bobbins

Close up of the Jack Bobbins & chain tensioner position plate (which hopefully will be gold anodised soon) The rear adjuster plates were replaced with solid Aluminium Blocks as the originals were very flimsy and giving up the ghost:-}]

yp-chainguard

Close up of the new KGB custom stainless steel chain guard showing off the high polish on the Swingarm

yp-arm

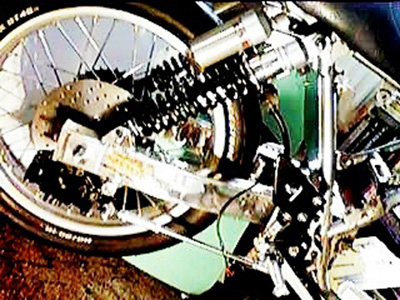

Twin shock from KYB make the rear end look complete
