The second best view on the bike , the first is the open road { BG }

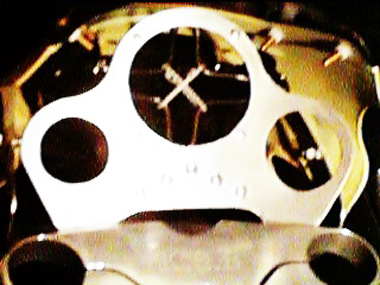

The odd cross arrangement in the big central hole is the Tacho suspension unit The five small blobs are LED's in their Bezels from Photelektric on Ebay This at present is just a try out, roughed up in aluminium the final item will be 12G Stainless steel CNC cut I hope to soon connect the LED's to a power source again and take a picture of the " Christmas Tree "

Well thanks to Paul of Pauls bike bits on EBAY I managed to get an RG MK1 dash board it was too long across the bike and I was not about to hack it so I decide to copy it but to my own layout

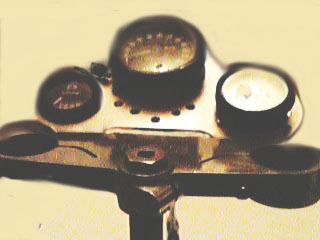

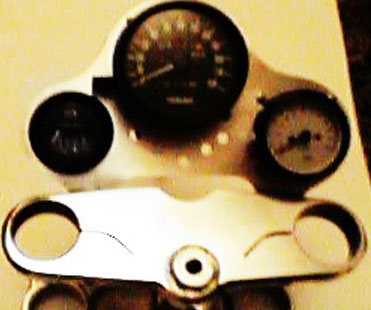

The photography does not do this justice but the Speedo & Tacho are raised clear of the dash top and are clear of their mounting holes

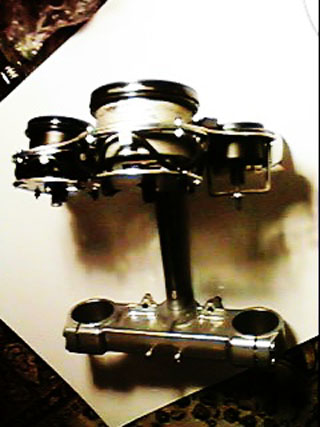

This is the overall assembly of the dash underside

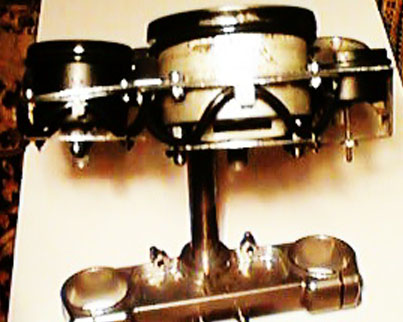

Here you can see the massive O rings that act as suspension rubbers

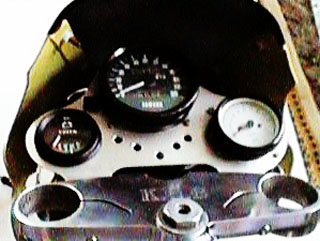

Here you can see the dash sitting snugly in the fairing

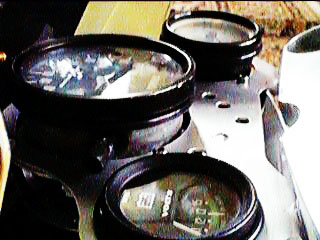

From this angle you can see how the Speedo & Tacho sit clear & proud
