Pictures of Blue Streak


Title

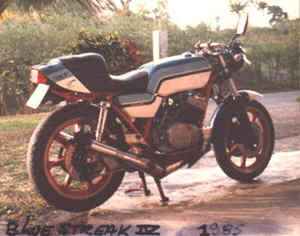

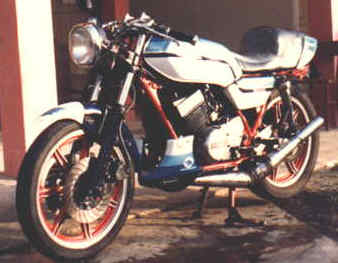

This is the latest re-incarnation of Blue Streak in all her glory.



The RD400 Engine is bored to 430cc, ported by George of K.G.B. Motorcycles in Trinidad W.I. The Allspeed exhausts are moded to match the porting. The carbs are RD350 YPVS re-jetted and fitted with K & N Filters with plastic inlet tubes. The reeds cages are RD350YPVS in machined inlet tracts plus YBIS

The rear suspension is Marzochi on a beefed up 400 swingarm, mounted on phosphor bronze bushes with grease grooves fed by grease nipples.

The rear brake system is a copy of a GP bike parallelogram system with a FJ1100 calliper modified to take datsun brake pads. ( The original pads were far too expensive and datsun 120Y pads fit when they are too worn for the car i.e. free!! ). The point of having the brakes mounted in this way is to stop suspension lock up in corners under hard braking. The rear wheel is stock ( shod here with rubber from Metzeler ). The pegs are custom jobs with custom linkages for gear shifting and brakes.

The front end is a Yamaha 650 with larger bearings fitted in a std. RD400F wheel shod with a Metzeller Tyre. The front axle is a steel 20mm dia. custom made part. The front stoppers are Suzuki GS550e clamping on standard RD4 discs ( each having 120 cooling holes drilled thro' them ) one of which needs the centre diameter skimmed out by 2mm to suit the original wheel bearing boss. The original loose ball steering head bearings were replaced by roller bearings fitted in custom made housings to suit the steering head of the frame and the steering boss of the yokes.

The Rear Fender was bobbed and the taillight assy. replaced with a DT175 unit. The seat pan was re-upholstered to give a bum stop for the rider, and a higher softer seat for the little lady.

The front headlamp fairing and belly pan are fibreglass replicas of the RD350YPVS models

BS post '85 crash rear
This is Blue Streak from RH rear sans bodywork post '85 crash.

BS post '85 crash front
This is Blue Streak from LH front sans bodywork post '85 crash.

BS '86
This is the pilot's eye view. Post '85 rebuild
