A compilation of Carb settings

taken from the FZR archive forum and condensed to make it easier to read & find facts
jet names

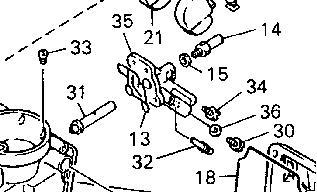

The Jet layout & numbers for the names used on the FZR600.

30... Jet,main stock = 107.5
31....Nozzle,main
32....Jet,pilot stock = 32.5
33....Jet Pilot AIR stock = 132.5
34....Jet, Starter stock = 52.5

If you wish to submit your working set up to the FZR Archive carb settings thread please use this as a reference guide

Thanks to Jesse for his corrections to the naming of jets & the diagram





Carb settings that work on the FZR600

Carb settings
Bike 1
Bike 2
Bike 3
Bike 4
Bike 5
Bike 6
Bike 7
Main Jet
130
Dyno-jet
112.5
107.5
110.0
112.5
?
118
Dyno-jet
Pilot Jet
?
?
stock
?
?
?
?
Start Jet
50
stock
non exup
52.5
52.5
stock
non-exup
stock
52.5
Float height
in mm
22mm
23mm
22mm
26
stock
26
24
Clip position
4 of 6
2 of 5
2 of 5
2 of 7
2 of 5
3 of 5
5 of 6
DJ Needle
Needle Pt No.
Dynojet
4129
factory pro
stage 1
5CFZ4 stock
non-calif model
?
factory pro
stage 3
1165r-66q
fp stage 3
?
Air screw
Turns out
variable
2.5
2.5
2.5
2.5
2.5
3.0
Air filter type
original
but K&N
original
but K&N
original
but K&N
original
K&N pods
K&N pods
ru-2582
original
but K&N
Headers
V&H
super sport
V&H
super sport
STOCK
D & D
V&H
super sport
STOCK
Micron
Exhaust Can
V& H
super sport
D & D
99-03 ZX6R
V& H
SS2R
D & D
V& H
super sport
After market
Micron
Elevation in feet
above sea level
St Lois
250-400
OKLAHOMA
200-400
VANCOUVER
SEA LEVEL
ORAGON
235
TORONTO
250+
SEA LEVEL
N. Hollywood CA.
267

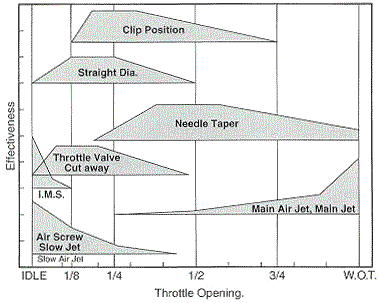

Ok to help out we have a diagram of what jets work in relation to throttle position



jet chart



Two links to get new jets and emulsion tubes:-

Factory Pro FZR600 Page for Emulsion tubes (CRZ-EMU-100160k) and Needle Kit (CRB-Y02-1.0)
Or,
you can order the DynoJet kit,from DynoJet Yamaha Kits: but you'll still have to order Factory Pro Emulsion Tubes.
The FZR is about halfway down the page under the 600-650 CC title. Look for the kit #4129. There is another one #4129HA for High Altitude, which you probably won't need.

Thanks to Darren for this chart & info

For further details E-Mail:- KGB-Racing at Saltmine dot Org dot UK
